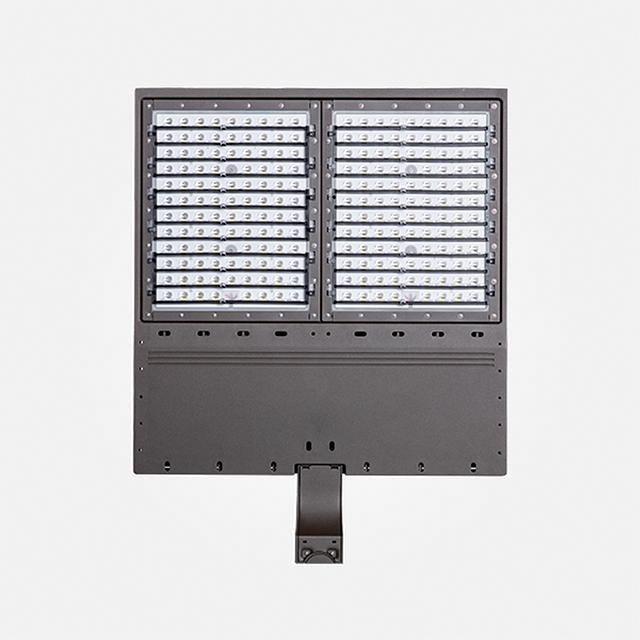

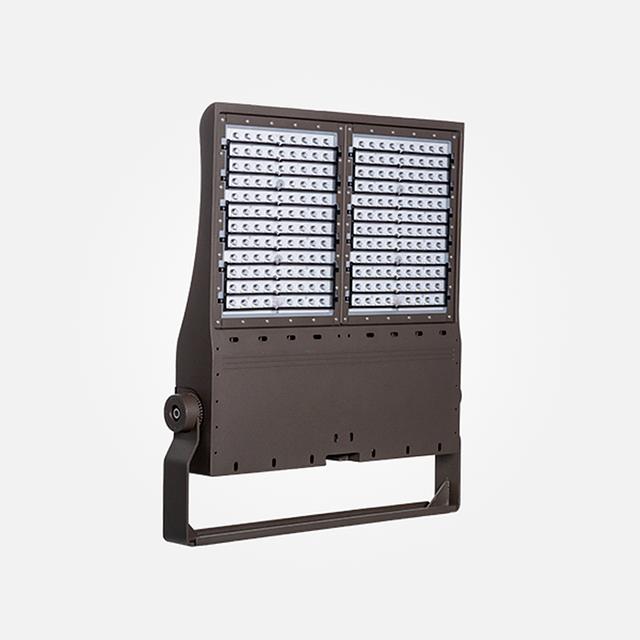

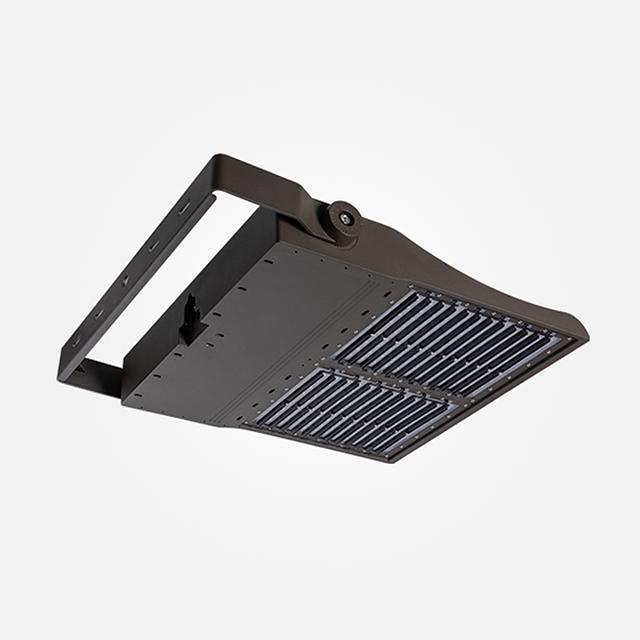

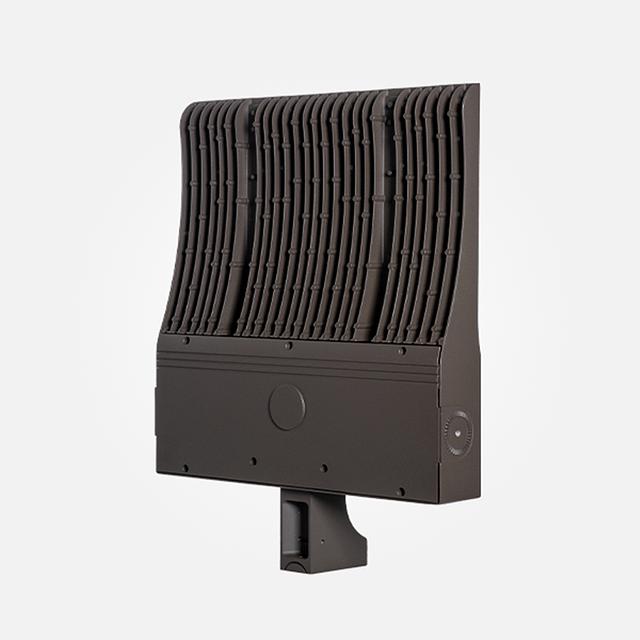

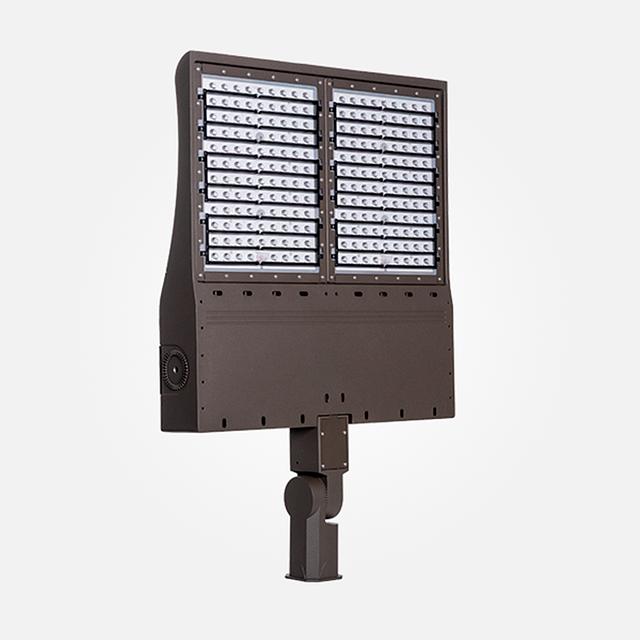

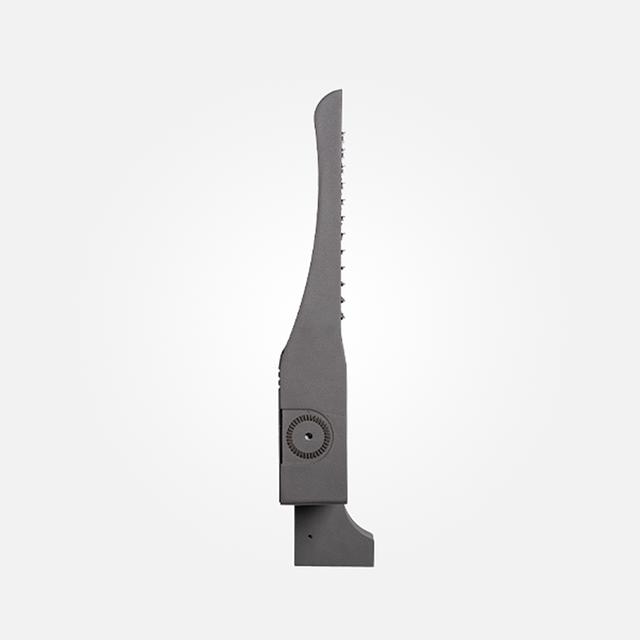

SBR™SBR™
Area & Site Light
The SBR LED Area & Site Light offers an impressive range of features, including C3 anti-corrosion resistance, multiple distribution options and a wide range of control options. With adjustable lumen outputs, mounting options, all within a rugged die-cast aluminum housing, fine-tuning an area light for your needs has never been easier.
Resources
CCT
- 5000K
CRI
- 70
Color / Finish
- Black
- Dark Bronze
- Green
Controls Options
- Photocell
- Synapse
Dimensions
- L: 12.68 In. W: 3.7 In. H: 22.48 In.
- L: 23.66 In. W: 4.09 In. H: 24.45 In.
Dimming Protocol
- 0-10 V
- Synapse
Distribution
- Type 2 S
- Type 3 S
- Type 5 S
EPA Rating
- 2.47
- 3.47
Efficacy
- 150
Lamp Life
- 100000
Listings
- cETLus
Lumens
- 27000
- 36000
- 45000
- 67500
- 75000
- 90000
Materials
- Aluminum
Mounting
- Pole
- Pole Mount
- Slip Fitter
- Yoke
- Yolk
NEMA Beam
- 3x3
- 6x4
Ratings & Compliance
- C3 Anti-Corrosion
- IK08
- IP66
Voltage
- 100-277 V
- 277-480 V
Warranty
- 5 yr
Watts
- 180
- 240
- 300
- 450
- 500
- 600
Weight
- 17.2
- 18.52
- 36.38
- 39.68
Product Type
- Exterior
