CHB-E™
CHB-E WH.jpgCHB-E™

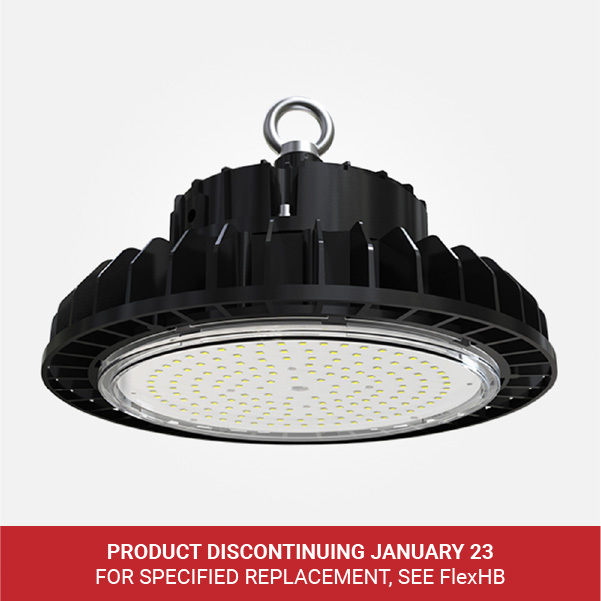

Circular Select High Bay
The CHB-E™ is a durable, heavy-duty construction, and power selectable high bay providing a robust solution for high-ceiling applications, especially warehouse spaces. Utilizing Samsung LED chips, CHB-E™ selectable delivers high-output performance and quality illumination, improving warehouse safety and productivity while also lowering maintenance and operating costs.
Resources
** IMPORTANT NOTE **
The below SKUs are hidden from the website UI
** DO NOT DELETE THE BELOW **
CHB-E-100W-40K-WD-U-D-HM-B
CHB-E-100W-50K-WD-U-D-HM-B
CHB-E-150W-40K-WD-U-D-HM-B
CHB-E-150W-50K-WD-U-D-HM-B
CHB-E-200W-40K-WD-U-D-HM-B
CHB-E-200W-50K-WD-U-D-HM-B
CHB-E-PM,CHB-E-SAFETY-SS-10FT
CHB-E-WG-B
The below SKUs are hidden from the website UI
** DO NOT DELETE THE BELOW **
CHB-E-100W-40K-WD-U-D-HM-B
CHB-E-100W-50K-WD-U-D-HM-B
CHB-E-150W-40K-WD-U-D-HM-B
CHB-E-150W-50K-WD-U-D-HM-B
CHB-E-200W-40K-WD-U-D-HM-B
CHB-E-200W-50K-WD-U-D-HM-B
CHB-E-PM,CHB-E-SAFETY-SS-10FT
CHB-E-WG-B
Beam Angle
- 60
- 90
- 120
CCT
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Black
- White
Controls Options
- Daylight Sensor
- Occupancy Sensor
Diameter
- 10 In.
Dimming Protocol
- 0-10 V
Distribution
- Wide
Efficacy
- 140 lm/w
Emergency Options
- Remote Inverter
Lamp Life
- 54000 hrs
Listings
- cETLus
Lumens
- 14000 Lm
- 16800 Lm
- 21000 Lm
- 28000 Lm
Materials
- Die-Cast Aluminum
Mounting
- Hanging
- Pendant
- Surface
Ratings & Compliance
- IP65
Shape
- Round
Voltage
- 100-277 V
Warranty
- 5 yr
Watts
- 100 w
- 120 w
- 150 w
- 200 w
