Linear Cove Lighting

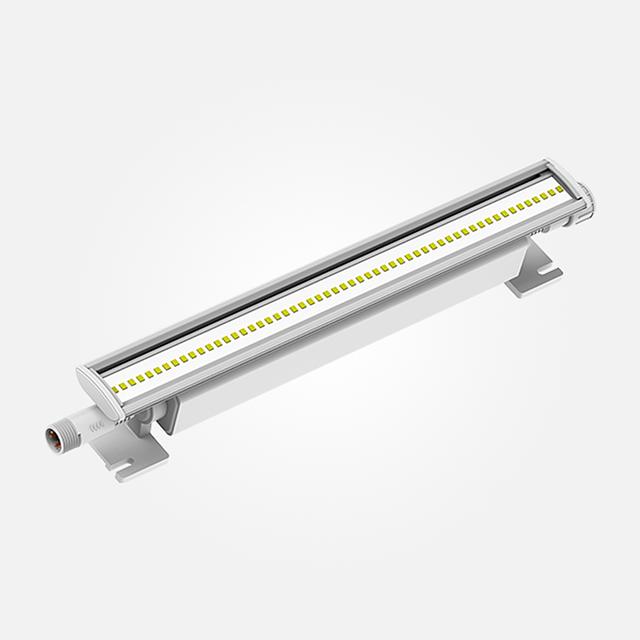

The Veil LCL™ Linear Cove Light is a sleek, high-performance fixture designed for architectural cove and perimeter applications. With adjustable ±90° aiming, multiple beam angles, and color temperatures (3000K, 3500K, 4000K), it offers exceptional versatility and visual impact. Available in 1' and 4' lengths with outputs up to 4,800 lumens and 120 LPW, the Veil LCL™ combines form and function with durable construction, easy installation, and 0-10V dimming compatibility.
Resources
**IMPORTANT NOTE** The below SKUs are hidden from the website UI
DO NOT DELETE THE BELOW
VEIL-LCL-1-10-C-110-U-D-SM
VEIL-LCL-1-10-C-20-U-D-SM
VEIL-LCL-1-10-C-2570-U-D-SM
VEIL-LCL-1-10-C-35-U-D-SM
VEIL-LCL-1-10-C-4070-U-D-SM
VEIL-LCL-1-10-C-50-U-D-SM
VEIL-LCL-1-10-C-80-U-D-SM
VEIL-LCL-1-10-C-ASYM-U-D-SM
VEIL-LCL-4-40-C-110-U-D-SM
VEIL-LCL-4-40-C-20-U-D-SM
VEIL-LCL-4-40-C-2570-U-D-SM
VEIL-LCL-4-40-C-35-U-D-SM
VEIL-LCL-4-40-C-4070-U-D-SM
VEIL-LCL-4-40-C-50-U-D-SM
VEIL-LCL-4-40-C-80-U-D-SM
VEIL-LCL-4-40-C-ASYM-U-D-SM
VEIL-LCL-EXT1
VEIL-LCL-EXT12
VEIL-LCL-EXT3
VEIL-LCL-SPT1
VEIL-LCL-SPT2
Adjustability
- Aimable Optics
Beam Angle
- 20
- 25x70
- 35
- 40x70
- 50
- 80
- 110
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Dimming Protocol
- 0-10 V
Distribution
- Asymmetical
- Wall Wash
Efficacy
- 110 lm/w
- 120 lm/w
Lamp Life
- 100000 hrs
Listings
- cETLus
Lumens
- 550 Lm
- 600 Lm
- 825 Lm
- 900 Lm
- 1100 Lm
- 1200 Lm
- 2200 Lm
- 2400 Lm
- 3300 Lm
- 3600 Lm
- 4400 Lm
- 4800 Lm
Materials
- Aluminum
Mounting
- Surface
Ratings & Compliance
- Damp
Shape
- Linear
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 5 w
- 7.5 w
- 10 w
- 20 w
- 30 w
- 40 w
Product Type
- Architectural
- Interior
