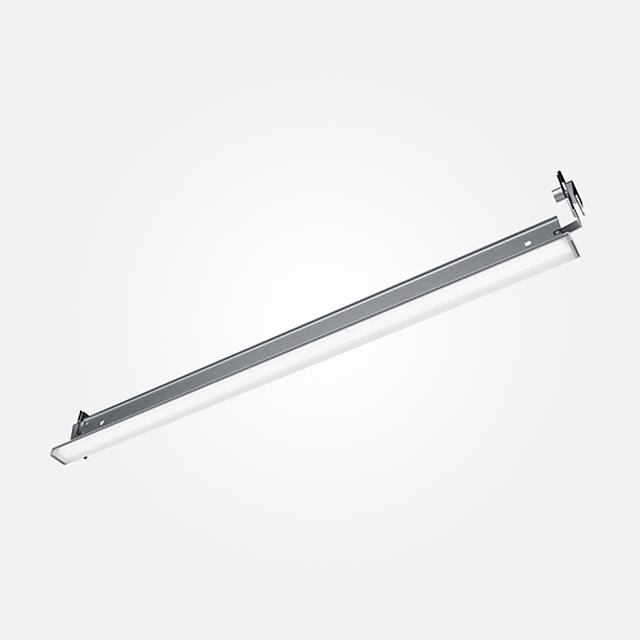

Architectural T-Grid Linear
T-Spec™, the revolutionary T-bar replacement light fixture from TGS allows complete creative freedom in lighting design. This unique combination of LED light bars, 15/16 (or 9/16) T-grid and PoE wiring allow seamless integration into existing spaces and nearly unlimited design combinations in new building applications. T-Spec™ kits with two foot light bars feature a 30W PoE driver and three 10W light bars connected with an 8 foot Ethernet power cable. The four-foot light bar kit includes a 60W PoE driver and three 20W light bars. Standard PoE cable length is 8’, with up to 20’ cabling available. UL Listed.
Resources
** IMPORTANT NOTE **
The below SKUs are hidden from the website UI
** DO NOT DELETE THE BELOW **
TSPEC2-10W-35K-09-U-D
TSPEC2-10W-35K-15-U-D
TSPEC2-10W-35K-S9-U-D
TSPEC2-10W-40K-09-U-D
TSPEC2-10W-40K-15-U-D
TSPEC2-10W-40K-S9-U-D
TSPEC2-10W-50K-09-U-D
TSPEC2-10W-50K-15-U-D
TSPEC2-10W-50K-S9-U-D
TSPEC2-30W-DRIVER
TSPEC2-8EM
TSPEC4-20W-35K-09-U-D
TSPEC4-20W-35K-15-U-D
TSPEC4-20W-35K-S9-U-D
TSPEC4-20W-40K-09-U-D
TSPEC4-20W-40K-15-U-D
TSPEC4-20W-40K-S9-U-D
TSPEC4-20W-50K-09-U-D
TSPEC4-20W-50K-15-U-D
TSPEC4-20W-50K-S9-U-D
TSPEC4-60W-DRIVER
TSPEC4-8EM
TSPEC-EXT-12FT
The below SKUs are hidden from the website UI
** DO NOT DELETE THE BELOW **
TSPEC2-10W-35K-09-U-D
TSPEC2-10W-35K-15-U-D
TSPEC2-10W-35K-S9-U-D
TSPEC2-10W-40K-09-U-D
TSPEC2-10W-40K-15-U-D
TSPEC2-10W-40K-S9-U-D
TSPEC2-10W-50K-09-U-D
TSPEC2-10W-50K-15-U-D
TSPEC2-10W-50K-S9-U-D
TSPEC2-30W-DRIVER
TSPEC2-8EM
TSPEC4-20W-35K-09-U-D
TSPEC4-20W-35K-15-U-D
TSPEC4-20W-35K-S9-U-D
TSPEC4-20W-40K-09-U-D
TSPEC4-20W-40K-15-U-D
TSPEC4-20W-40K-S9-U-D
TSPEC4-20W-50K-09-U-D
TSPEC4-20W-50K-15-U-D
TSPEC4-20W-50K-S9-U-D
TSPEC4-60W-DRIVER
TSPEC4-8EM
TSPEC-EXT-12FT
Materials
- Acrylic
- Aluminum
Ratings & Compliance
- DLC
- FCC
Shape
- Linear
Watts
- 10 w
- 20 w
CRI
- 80 CRI
Mounting
- T-Grid
Distribution
- Direct
- Wall Wash
Lumens
- 1300 Lm
- 2600 Lm
Controls Options
- PoE Enabled
CCT
- 3000K
- 3500K
- 4000K
- 5000K
Dimming Protocol
- 0-10 V
- Lutron Vive
Efficacy
- 130 lm/w
Lamp Life
- 50000 hrs
Listings
- cULus
Emergency Options
- Remote Inverter
Voltage
- 100-277 V
Warranty
- 5 yr
Beam Angle
- 120
Product Type
- Architectural
- Interior
