ALP™ E2
ALP E2 M SP.jpg
ALP E2 S ARM.jpg
ALP E2 S SP.jpgALP™ E2

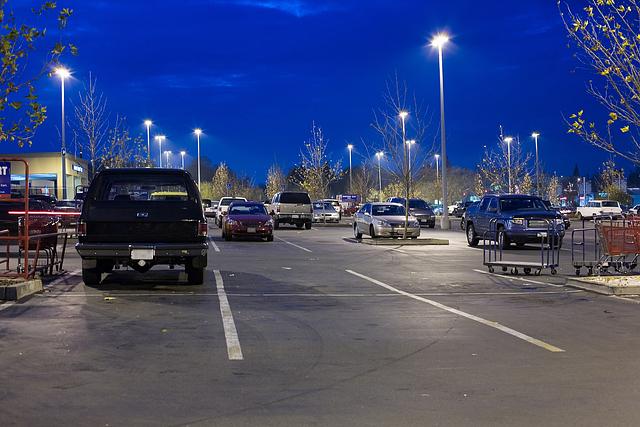

Adjustable Area & Site Light
Meticulously designed with precision engineering, the ALP™ E2 Adjustable LED Area Light offers an impressive range of customizable features. Our next-generation, contractor-grade area light gives you the flexibility to field select the ideal CCT and lumens output, allowing you to fine-tune the lighting to meet your specific requirements.
Resources
ALPE2-AM
ALPE2-B
ALPE2-D0
ALPE2-D1-3PC
ALPE2-D1-3SC
ALPE2-D1-7PC
ALPE2-D1-7SC
ALPE2-D4
ALPE2-FM
ALPE2-M-L-C-3-H-XXX-D
ALPE2-M-L-C-3-U-XXX-D
ALPE2-M-L-C-4-H-XXX-D
ALPE2-M-L-C-4-U-XXX-D
ALPE2-M-L-C-5-H-XXX-D
ALPE2-M-L-C-5-U-XXX-D
ALPE2-M-RLS
ALPE2-SF
ALPE2-S-L-C-3-H-XXX-D
ALPE2-S-L-C-3-U-XXX-D
ALPE2-S-L-C-4-H-XXX-D
ALPE2-S-L-C-4-U-XXX-D
ALPE2-S-L-C-5-H-XXX-D
ALPE2-S-L-C-5-U-XXX-D
ALPE2-S-RLS
ALPE2-TR
ALPE2-WM
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Black
- Dark Bronze
Controls Options
- Daylight Sensor
- Occupancy Sensor
- Photocell
Dimensions
- L: 22.5 In. W: 11.2 In. H: 3 In.
- L: 26.53 In. W: 13.98 In.
Dimming Protocol
- 0-10 V
- Synapse
Distribution
- Type 3
- Type 4
- Type 5
Efficacy
- 125
- 140
- 150
Lamp Life
- 100000
Lamp Source
- LED
Listings
- cULus
Lumens
- 12213
- 12229
- 12540
- 16720
- 16770
- 17085
- 19538
- 19809
- 30028
- 30258
- 30719
- 34981
- 35347
- 35657
- 39458
- 40200
- 40276
Materials
- Die-Cast Aluminum
Mounting
- Pole
- Slip Fitter
- Trunnion
- Wall
Ratings & Compliance
- DLC
- DarkSky Approved
- FCC
- IK08
- IP65
Voltage
- 120-277 V
- 277-480 V
Warranty
- 5 yr
Watts
- 80
- 120
- 150
- 200
- 240
- 300
Product Type
- Exterior
