Outline

T-Grid Light

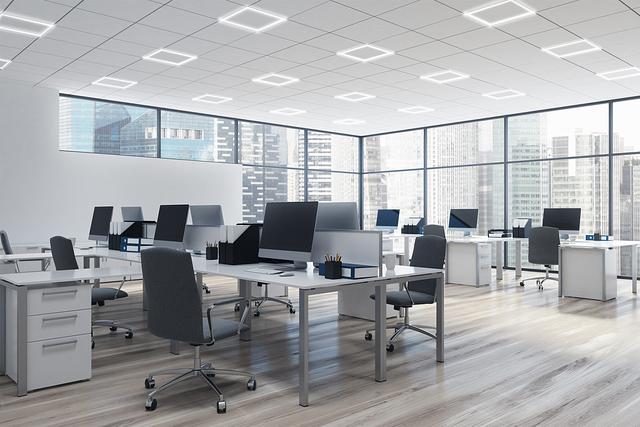

The Outlineā„¢ T-Grid light is a sleek, modern fixture offering a clean aesthetic and easy installation. This innovative new Outline fixture installs directly to your drop ceiling frame bars, instead of the traditional method of installing an entire fixture between ceiling panels. Perimeter illumination offers a unique edge-lit look and allows for a variety of lighting placements while still providing lumen outputs you've come to expect from traditional-style LED flat panels and troffer fixtures. Outline comes standard with field selectable wattage and CCT. Available in two sizes, this light is a perfect addition to commercial, retail, and office applications.

Specification Sheet

Resources

CCT

  • Field Selectable CCT

CRI

  • 80 CRI

Color / Finish

  • White

Controls Options

  • Daylight Sensor
  • Occupancy Sensor

Dimming Protocol

  • 0-10 V
  • Lutron Vive

Emergency Options

  • Remote EM Battery
  • Remote Inverter

Installation Type

  • New Construction
  • Retrofit & Remodel

Lamp Life

  • 50000 hrs

Listings

  • cULus

Lumens

  • 2700 Lm
  • 3500 Lm
  • 4000 Lm
  • 5400 Lm

Materials

  • Acrylic
  • Aluminum

Mounting

  • T-Grid

Ratings & Compliance

  • Damp

Shape

  • Rectangular
  • Square

Size

  • 2x2 Ft.
  • 2x4 Ft.

Voltage

  • 110-277 V

Warranty

  • 5 yr

Watts

  • 27 w
  • 35 w
  • 40 w
  • 45 w
  • 54 w

Product Type

  • Interior
