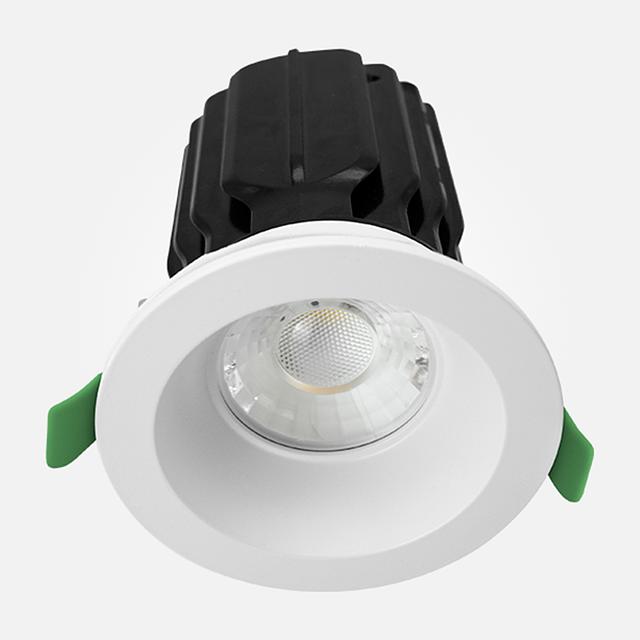

ICON R3
3" Round Downlight

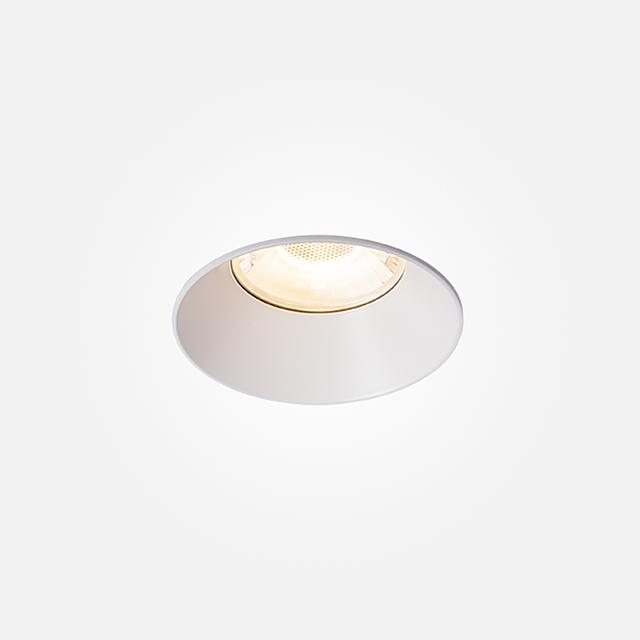

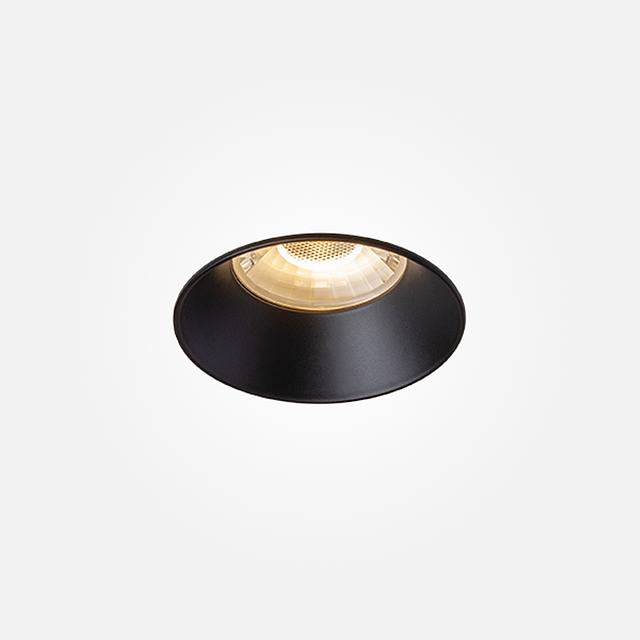

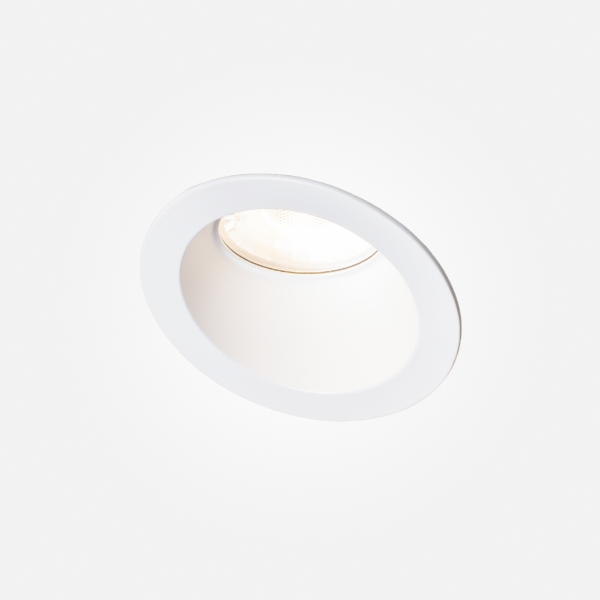

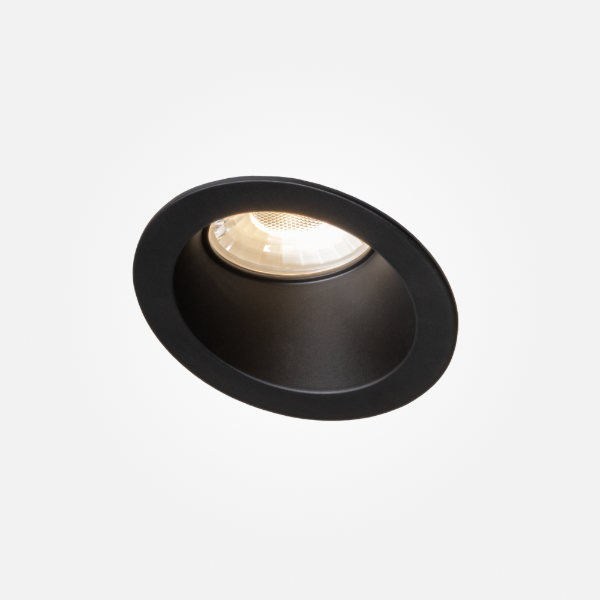

Introducing the ICON R3, the ultimate solution for both style and performance. This versatile 3" round downlight is wet location rated, making it perfect for a range of residential, commercial, and multi-family applications. With a field selectable 5CCT selector for 2700K, 3000K, 3500K, 4000K, 5000K and a high CRI of 90+, ICON delivers exceptional light quality with perfect color accuracy. Available with Triac Dimming for seamless light adjustments, ICON is offered in two elegant trim options: trimmed and trimless, allowing you to customize the look of your space.
Resources
Materials
- Aluminum
- PVC
Ratings & Compliance
- Energy Star
- IC
- JA8
- Title 24
- Wet
Shape
- Round
Aperture
- 3 In.
Watts
- 10 w
- 15 w
CRI
- 91 CRI
Lumens
- 700 Lm
- 1000 Lm
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Dimming Protocol
- 0-10 V
- Triac (Leading Edge)
Efficacy
- 66 lm/w
- 70 lm/w
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- ETL
Emergency Options
- Remote EM Battery
Trim Finish
- Black
- White
Trim Type
- Baffle
- Trimless
Voltage
- 120 V
Warranty
- 5 yr
Beam Angle
- 24
- 38
- 60
Product Type
- Decorative & Multifamily
- Interior
